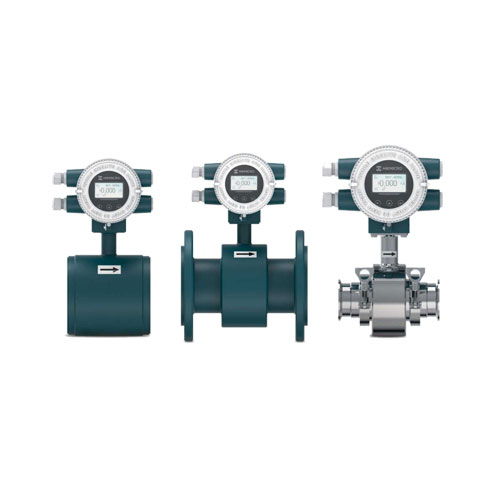

HIKMICRO Electromagnetic Flow Meter FE0 Series
HIKMICRO Electromagnetic Flow Meter FE0 Series

HIKMICRO Electromagnetic Flow Meter FE0 Series

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction
  • Good corrosion resistance and abrasion resistance with multiple selection of lining and electrodes
  • High accurate measurement, reaching ±0.3% of the indicated value
  • The transmitters are interchangeable and accuracy can be achieved without recalibration of the actual flow
  • Wide measuring range, up to 1000:1
  • High input impedance of the converter (>10 Ω), suitable for measuring low conductivity media ≥ 1μS/cm
  • Supports flow rate measurement from 0.01 to 12 m/s
  • Flexible sensor & transmitter styles to ensure compatibility in various application
Category:

Description

HIKMICRO Electromagnetic Flow Meter FE0 Series

The HIKMICRO Electromagnetic Flow Meter FE0 Series is a reliable and highly accurate solution for measuring the flow rate of conductive liquids in industrial and utility applications. Designed with advanced electromagnetic measurement technology, this flow meter delivers stable performance, excellent repeatability, and minimal maintenance, making it an ideal choice for modern process monitoring systems.

Manufactured by HIKMICRO, the FE0 Series is engineered to provide precise flow measurement without any moving mechanical parts. This design significantly reduces wear and tear, ensuring long-term reliability and consistent measurement accuracy even in demanding environments. The meter works by applying Faraday’s Law of Electromagnetic Induction, which allows it to measure the velocity of conductive liquids as they pass through a magnetic field.

The HIKMICRO FE0 Series is widely used in industries such as water treatment, wastewater management, chemical processing, and industrial utilities. It is particularly effective for measuring liquids like potable water, wastewater, slurry, and other conductive fluids commonly found in industrial processes. With its robust construction and high resistance to corrosion and vibration, the FE0 Series is well suited for continuous operation in challenging environments.

Another key advantage of the HIKMICRO Electromagnetic Flow Meter FE0 Series is its user-friendly design. The device offers easy installation, flexible configuration, and clear digital display options that allow operators to monitor flow data efficiently. Its high accuracy and stable signal output help improve process control, reduce operational inefficiencies, and support better decision-making in industrial systems.

Overall, the HIKMICRO FE0 Series provides a dependable flow measurement solution for organizations seeking accuracy, durability, and efficiency. By combining advanced electromagnetic sensing technology with industrial-grade construction, this flow meter helps ensure reliable monitoring of liquid flow across a wide range of applications.

Additional information

Brand

Hikmicro


Electromagnetic Flow Meter






Series









Connection



Transmitter

Structure Type



Basic Error





Repeatability





FE00                                 FE01                                    FE02                                   FE03





Standard Process             Low Conductivity              Micro Flow Process                  Slurry Process

Process



Flanged, Wafer                 Flanged, Wafer                 Flanged, Hygienic                       Flanged, (flangeless),  Hygienic     (flangeless),  Hygienic                                                         Wafer (flangeless)





Integral Mount, Remote Mount


0.3% or 0.5%



≤±0.1% (Accuracy: 0.3%) or ±0.16% (Accuracy: 0.5%)



0.5%







±0.16%

 0.5%±1mm/s(0.01-

0.3m/s)





±0.16%



0.5%







±0.16%


Diameter



DN10~DN1200



DN10~DN600



DN10~DN40



DN10~DN600


Electrode Materials



316L Stainless Steel, Hastelloy C, Titanium, Tantalum, Tungsten Carbide, Platinum-Iridium Alloy


Grounding Method

 Dielectric Grounding, Double Electrode; Standard 304 Grounding Ring; 304 Grounding Ring with Neck; Grounding Electrode, Three Electrodes; Standard Hc Grounding Ring;

Standard Ti Grounding Ring; Standard Ta Grounding Ring
Lining Material

Neoprene ( Ne ) , FEP ,                                                 Neoprene ( Ne ) , FEP ,        Neoprene ( Ne ) , FEP , PTFE , PU , PFA               FEP , PTFE , PFA                 PTFE , PU , PFA                   PTFE , PU , PFA




Conductivity

 ≥ 5 S/cm

( negotiate with our company for

order below 5 S/cm )





≥ 1 S/cm

 ≥ 5 S/cm

( negotiate with our company for

order below 5 S/cm )

 ≥ 5 S/cm

( negotiate with our company for

order below 5 S/cm )
Measuring Range Flow Rate



0.5~12m/s





0.5~12m/s





0.01~12m/s





1~12m/s
Protection Rating IP65, IP67, IP68
Ambient Temperature Range

-25 ¥~55 ¥


Output Signal

 4~20mA + Pulse + MODBUS ; 4~20 mA + Pulse + MODBUS + HART (4mA~20mA analog output  is active output)


Power Supply



DC 24V ( -15%~+20% ); AC 220V  ( -15%~+10% ), 47~63Hz
Ambient Temperature Influence <±0.15%/10 ¥

(Accuracy: 0.3%)               <±0.25%/10 ¥         <±0.25%/10 ¥          <±0.25%/10 ¥

or <±0.25%/10 ¥

(Accuracy: 0.5%)
Analog  Output Error ≤± 0.016mA
