Fluke P3100 HP Very High-Pressure Hydraulic Deadweight Tester
- Available in ranges from 30,000 psi to 60,000 psi (2,000 bar to 4,000 bar)
- High pressure measurement at 0.02 % of reading without the need for pressure correction factors
- Optional Improved Accuracy of 0.015% of Reading
- Description
- Additional information
- SPECIFICATIONS
Description
Fluke P3100 HP Series Very High-Pressure Hydraulic Deadweight Tester
The P3100 HP Series very high-pressure hydraulic deadweight tester is the culmination of over 65 years of experience in the design and manufacturing of primary pressure standards. The P3100 HP Series can be used to calibrate virtually any high-pressure sensing device including transducers, transmitters, gauges or pressure switches. It provides a convenient means of testing high pressure instruments for calibration accuracy.
Instrument base

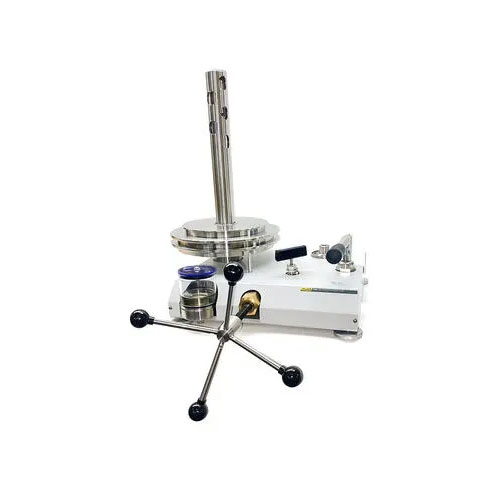

The P3100 HP Series very high-pressure hydraulic deadweight tester incorporates the “Piston Gauge” principle, in which an applied pressure within the system, balances a known mass applied to a piston of known effective area. The unit comprises a base plate onto which is mounted a high-pressure manifold, a piston/cylinder unit (PCU), a fluid reservoir, a variable volume 4-arm spindle pressure generating system with a lever-style priming pump and a safety relief valve (which protects both the low- and high-pressure systems from accidental overpressure). A built-in test station allows quick and secure connection of the device under test. Adjustable leveling feet and an external level vial ensure proper leveling for optimal performance. Additionally, a piston float reference indicator helps the user easily identify the optimal “mid-float” position, enhancing measurement precision. The whole assembly is contained within a strong GRP housing.
Piston/Cylinder
At the heart of every deadweight tester is the piston-cylinder assembly—and in the P3100 HP Series, this critical component is engineered for superior performance. Each piston is crafted from high-grade tungsten carbide, offering exceptional long-term stability, outstanding durability, and ultra-low coefficients of thermal expansion and pressure distortion. The result: consistently accurate performance you can rely on, year after year.
Weight Sets
The P3100 HP Series includes standard weights made from Series 3 non-magnetic stainless steel for superior stability and corrosion resistance. Each mass is individually marked with the instrument’s serial number and its corresponding nominal pressure value. Choose from pressure units in psi, bar, or MPa. For added flexibility, optional PressCal software allows support for additional pressure units to suit your calibration needs.
Gravity Correction
Because gravity varies by location—and even small differences can affect high-accuracy pressure calibrations—the P3100 HP Series can be calibrated to your specific local gravity at no additional cost. If local gravity is not specified, instruments are calibrated to the standard reference of 980.665 cm/s², ensuring consistent and reliable performance out of the box.
Additional information
| Brand | Fluke Calibration |
|---|
| Pressure ranges | |
|---|---|
| P3117 | 500 psi to 30 000 psi, or 40 bar to 2 000 bar, or 4 MPa to 200 MPa |
| P3118 | 500 psi to 40 000 psi, or 40 bar to 2 600 bar, or 4 MPa to 260 MPa |
| P3119 | 500 psi to 60 000 psi, or 40 bar to 4 000 bar, or 4 MPa to 400 MPa |
| Instrumental measurement uncertainty specification | |
| Standard Accuracy: ±(0.02 % of reading or 0.001 % of range, whichever is greater) Optional (Improved Accuracy): Correction factors are not necessary within: Windows-based PressCal software is available to apply corrections. |
|
| Materials of construction | |
| Standard weight materials | Series 3 non-magnetic, austenitic, stainless steel (Density: 7.8 g/cm³) |
| Piston materials | Tungsten carbide with nickel binder |
| Cylinder material | Tungsten carbide with cobalt binder |
| Thermal coefficient of expansion | 11 ppm/°C |
| General Specifications | |
| Test port adaptors | DH500, equivalent to HiP 60-xxxx high pressure fittings (60,000 psi) for 1/4” and 3/8” |
| Weight | 23 lbs (10.5 kg) |
| Dimensions (W x D x H) | 18” x 20” x 20” (457 mm x 508 mm x 508 mm) |
| Mass set weight | 100 lbs (45.5 kg) |
| Reservoir volume | 150 cc |
| Priming pump | Included with Standard 3117, 3118 and 3119 models |
| Minimum weight increments | 2 bar, 0.2 MPa, 20 psi |
| Optional fine increment weights | Minimum increments of 0.2 bar, 0.02 MPa, 2 psi |
| Seal materials | Viton and Buna |
| Operating fluid | Sebacate, reference 3069551 (1 gallon standard) |
| Shipping | Ships as a pallet and a crate |
